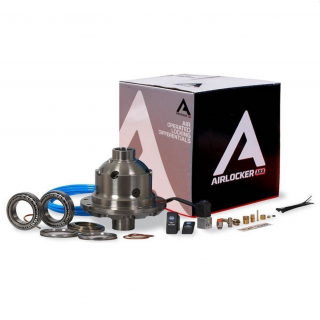

Blocking ARB RD142

Air Locker ARB.

Differential with pneumatic locking system.

Reliable and sturdy, it's been the benchmark in locking technology for 35 years.

Supplied with connections and hoses, but without compressor.

Front or rear mounting.

Model with full floating axle (2 bearings per wheel).

Requires specific bearing kit.

Number of large ring gear mounting bolts: 12.

Number of shaft splines: 30.

Wheel shaft Ø33mm.

Fits on :

Toyota Land Cruiser series 4# BJ40 3.0 D (1969 -> 1980) B
Toyota Land Cruiser series 4# BJ42 3.4 D (1980 -> 1985) 3B
Toyota Land Cruiser series 4# BJ43 3.0 D (1974 -> 1980) B
Toyota Land Cruiser 4# BJ45 3.4 D series (1980 -> 1985) 3B
Toyota Land Cruiser 4 series# BJ46 3.4 D (1980 -> 1985) 3B
Toyota Land Cruiser 4# FJ40/45 3.9 es series (1960 -> 1974) F
Toyota Land Cruiser 4# FJ40/56 series 4.2 es (1975 -> 1983) 2F
Toyota Land Cruiser 4# HJ45 3.6 D series (1969 -> 1980) H
Toyota Land Cruiser series 5# FJ55 3.9 es (1968 -> 1974) F
Toyota Land Cruiser 5# FJ55 4,2 es series (1975 -> 1979) 2F
Toyota Land Cruiser 6# BJ60 3.4 D series (1980 -> 1985) 3B
Toyota Land Cruiser 6# FJ60 4.2 es series (1981 -> 1987) 2F
Toyota Land Cruiser 6 series# FJ62 4.0i es (1988 -> 1990) 3F-E
Toyota Land Cruiser 6# HJ60 4.0 D series (1981 -> 1991) 2H
Toyota Land Cruiser 6# series HJ61 4.0 TD (1985 -> 1990) 12H-T
Toyota Land Cruiser 7# series - front / rear blades BJ70 3.4 D (1985 -> 1990) 3B
Toyota Land Cruiser 7# series - front / rear blades BJ71 3.4 TD (1985 -> 1990) 13BT
Toyota Land Cruiser 7# series - front / rear blades BJ73 3.4 D (1985 -> 1990) 3B
Toyota Land Cruiser 7# series - front / rear blades BJ74 3.4 TD (1985 -> 1990) 13BT
Toyota Land Cruiser 7# series - front / rear blades BJ75 3.4 D (1985 -> 1990) 3B
Toyota Land Cruiser 7# series - front / rear FJ70 4.0 es (1990 -> 1992) 3F
Toyota Land Cruiser 7# series - blades front / rear FJ73 4.0 es (1990 -> 1992) 3F
Toyota Land Cruiser 7# series - FJ75 4.0 es front / rear blades (1990 -> 1992) 3F
Toyota Land Cruiser 7# series - front / rear FZJ70 4.5 es (1993 -> 1999) FZ-F
Toyota Land Cruiser 7# series - FZJ70 4,5i es front / rear blades (1993 -> 1999) 1FZ-FE
Toyota Land Cruiser 7# series - blades front / rear FZJ73 4.5 es (1993 -> 1999) FZ-F
Toyota Land Cruiser 7# series - FZJ73 4.5i es front / rear blades (1993 -> 1999) 1FZ-FE
Toyota Land Cruiser 7# series - blades front / rear FZJ75 4.5 es (1993 -> 1999) FZ-F
Toyota Land Cruiser 7# series - FZJ75 4.5i es front / rear blades (1993 -> 1999) 1FZ-FE
Toyota Land Cruiser 7# series - front / rear blades HZJ70 4.2 D (1990 -> 1993) 1HZ
Toyota Land Cruiser 7# series - front / rear blades HZJ73 4.2 D (1993 -> 2007) 1HZ
Toyota Land Cruiser 7# series - front / rear blades HZJ75 4.2 D (1993 -> 2001) 1HZ
Toyota Land Cruiser 7# series - front / rear PZJ70 3.5 D (1990 -> 1993) 1PZ
Toyota Land Cruiser 7# series - front / rear blades PZJ73 3.5 D (1990 -> 1993) 1PZ
Toyota Land Cruiser 7# series - front / rear blades PZJ75 3.5 D (1990 -> 1993) 1PZ
Toyota Land Cruiser 8# series FJ80 4.0 es (1990 -> 1992) 3F
Toyota Land Cruiser 8# series FJ80 4.0i es (1990 -> 1992) 3F-E
Toyota Land Cruiser 8# series FZJ80 4,5i es (1992 -> 1998) 1FZ-FE
Toyota Land Cruiser 8# HDJ80 12s 4.2 TD series (1990 -> 1992) 1HD-T
Toyota Land Cruiser série 8# HDJ80 12s 4.2 TD (1992 -> 1995) 1HD-T

Supplied without compressor.

Please specify the exact year and model of your vehicle when ordering.
