Serrure à verrouillage pour cabine conducteur de: Ford Transit 2000 - 2006

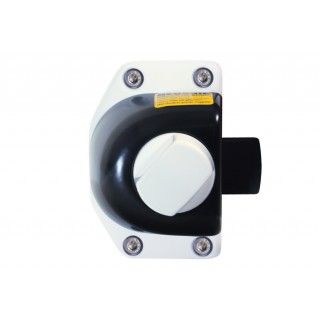

Pair of security locks Ford Transit 2000 - 2006

HEOSafe
HEO1446
€135.00
Tax included

Standard - locking knob

Quantity

Assembly on door frame

1 pair of locks (1 x left / 1 x right)

Latch lock, not lockable


OPERATING INSTRUCTIONS :

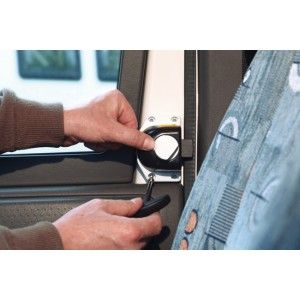

- Press the turning knob to open or close the door.
- The turning knob locks automatically as soon as the deadbolt is completely unscrewed or screwed in.

INSTALLATION INSTRUCTIONS :

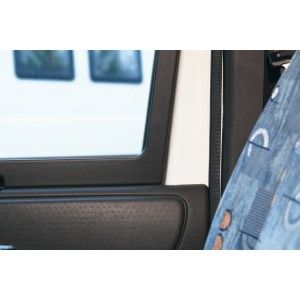

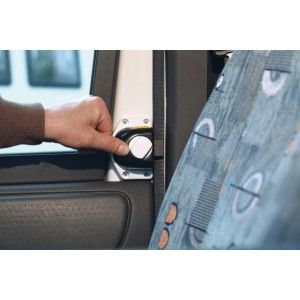

- Position the lock on the door frame. The distance between the lock box and column B should be approx. 3 mm.
- Position the lock in such a way that the closed bolt pushes against the lining.

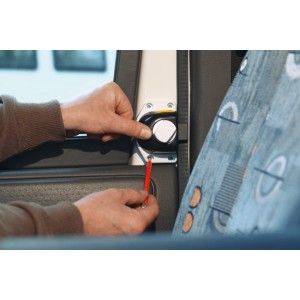

- Now you can mark the holes.

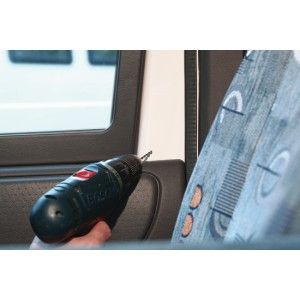

- Remove the lock and drill a pilot hole using a 3.2 mm bit.
- Secure the special tapping screws with a 4 mm Allen® key.

IMPORTANT ASSEMBLY INSTRUCTIONS :
After installation, close the door gently and make sure that the HEOSafe® lock box passes through the rubber seal without any problems.
